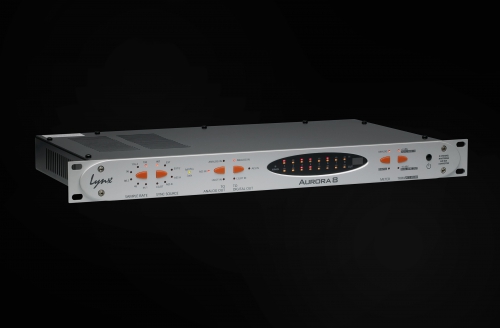

The Aurora 8 AD/DA provides world-class analog to digital and digital to analog conversion in a compact one-rack space format. With sample rates up to 192 kHz, Aurora offers wide, open, uncompressed and unequalised audio for studios, mastering facilities, remote recording, broadcast and production. Lynx’s exclusive SynchroLock™ word clock offers extreme jitter reduction, providing clean digital audio signals for Aurora and other digital devices in the studio.
Simultaneous 8 channel analog and 8 channel AES/EBU I/O
24 Bit / 192 kHz mastering quality A/D and D/A conversion
192 kHz AES/EBU I/O supporting single and dual wire modes
Extensive remote control capability via Lynx AES16, AES16e
On-board 16 channel digital mixer provides flexible I/O routing
Word clock I/O with Lynx SynchroLock™ sample clock technology
We don’t restrict how you choose to connect your devices. With LSlot, you can change your connection whenever you need. We have you covered now, and in the future when new standards are made available.
As of today we have USB, Thunderbolt, Pro Tools HD and Dante.
Line in L/R
THD+N: -108dB @1kHz, -1dBFS, -104dB @1kHz, -6dBFS
Dynamic range: 117dB, A-weighted
Frequency response: ±0.10dB, 20–20kHz
Crosstalk: -120dB maximum @ 1kHz, -1dBFS signal
Line out L/R
THD+N: -107dB @1kHz, -1dBFS, -106dB @1kHz, -6dBFS
Dynamic range: 117dB, A-weighted
Frequency response: ±0.01dB, 20–20kHz
Crosstalk: 120dB maximum @ 1kHz, -1dBFS signal
I/O
8 inputs and 8 outputs
24 bit AES/EBU format, transformer coupled
Sample rates
All standard rates and variable rates up to 192kHz in both single-wire and dual-wire modes
Analog I/O ports
25-pin female D-sub connectors
Digital I/O ports
25-pin female D-sub connectors
External clock
75 Ω BNC word clock input and output
MIDI (for firmware updates only)
One input and one output. Standard optoisolated, 5-pin female DIN connectors
AC power
100 / 115 / 230 VAC, 70 watts
Size
1.75" H x 19" W x 9" D
Shipping weight
12 pounds
Certifications
CE and FCC Class B EMI, CE product safety
